DC 24V Pneumatic Pulse Valve DMF-Z-50S with Big and Small NBR Long Working Life Diaphragm

DC 24V Pneumatic Pulse Valve DMF-Z-50S with Big and Small NBR Long Working Life Diaphragm

  • DC 24V Pneumatic Pulse Valve DMF-Z-50S with Big and Small NBR Long Working Life Diaphragm
  • DC 24V Pneumatic Pulse Valve DMF-Z-50S with Big and Small NBR Long Working Life Diaphragm
DC 24V Pneumatic Pulse Valve DMF-Z-50S with Big and Small NBR Long Working Life Diaphragm
পণ্যের বিবরণ:
Place of Origin: CHINA
পরিচিতিমুলক নাম: BRANDO
সাক্ষ্যদান: CE
Model Number: DMF-Z-50S
প্রদান:
Minimum Order Quantity: 1 PIECE
মূল্য: negotiation
Packaging Details: BOX, CARTON, PALLET
Delivery Time: 7 DAYS
Payment Terms: Western Union, T/T
Supply Ability: 200000PCS PER MONTH
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Material: ADC 12 Alumininum Voltage: AC / DC
Coil Color: Glass Green and Dark Green Terminal: DIN43650A
Connecting Size: G 2" Seal Material: NBR or FKM
লক্ষণীয় করা:

pulse jet valves

,

solenoid শিশ্নকে স্পন্দন

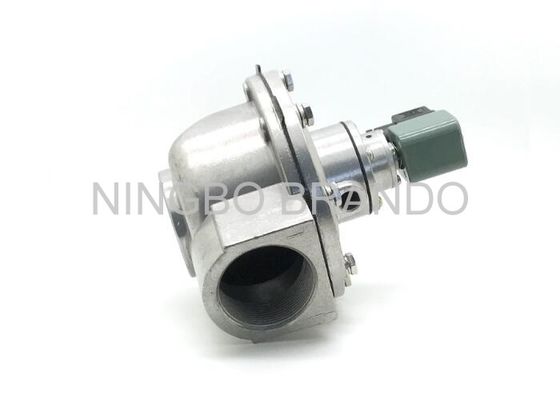

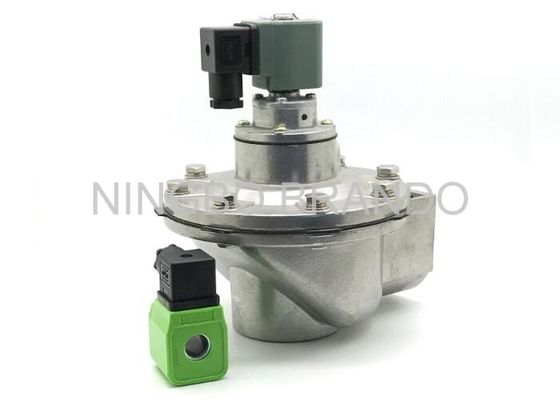

DC 24V Pulse Valve DMF-Z-50S with Big and Small NBR Long Working Life Diaphragm



The company's bag-type dust products are used in the world of iron and steel metallurgy, cement, thermal power, chemical, construction, waste incineration and other industries in the dust control and flue gas purification products exported to the United States, Europe, Japan and Southeast Asia and other regions , In the domestic and foreign markets enjoy a high reputation and visibility



DMF-Z-50S pulse valve with bellow specifications:

Diaphragm Diameter (biggest position) 160mm
Small diaphragm diameter 66mm
Kv/Cv 61.24/71.47
Injection Area 18~28
Inlet/Outlet Pipe Size G 2"
Weight 2.4 kgs


Overall Dimensions of DMF-Z-50S:

DC 24V Pneumatic Pulse Valve DMF-Z-50S with Big and Small NBR Long Working Life Diaphragm 0




  A B C D E F
DMF-Z-50S 180 100 43 G 2" φ160 206


Material Description of Each Part of DMF-Z-50S Pulse Valve:

1, Valve Body: ADC12, Alumininum

2, Clip: SS304

3, Plunger tube assembly: 430FR and SS304 stainless steel

4, Diaphragm: NBR/FKM

5, Spring: SS304

6, Screw: SS302



Puls Valve Working Shop:

DC 24V Pneumatic Pulse Valve DMF-Z-50S with Big and Small NBR Long Working Life Diaphragm 1
