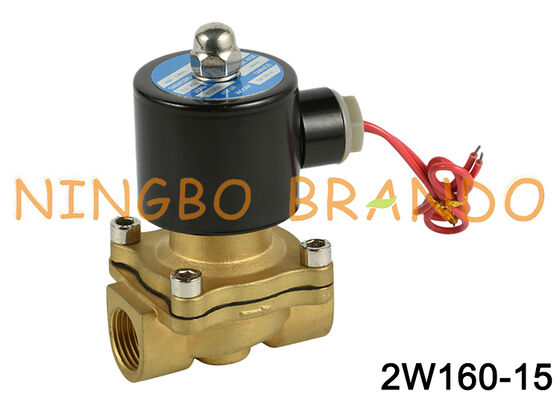

2W160-15 1/2'' Brass Solenoid Valve for Water Air Oil 24V 110V 220V
Product Features:
1. Working Medium: Water, Air, Oil, Gas, etc.
2. Working Meidum Temperature Range: NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -5 to +150℃
3. Working Pressure Range: 0 to 1 MPa
4. Function, 2 Way Normally Closed, 2 Way Normally Open
5. Operation: Direct Lifting Diaphragm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, FKM, EPDM
8. Port Size: 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
9. Thread Type: G, NPT
10. Supply Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data of 2W & 2S Solenoid Valve:
|
2W Series
|
2W025-08
|
2W040-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
|
2S Series
|
2S025-08
|
2S040-10
|
2S160-15
|
2S200-20
|
2S250-25
|
2S350-35
|
2S400-40
|
2S500-50
|
|
Orifice Size
|
2.5
|
4
|
15
|
20
|
25
|
35
|
40
|
50
|
|
Port Size
|
1/4''
|
3/8''
|
1/2''
|
3/4''
|
1''
|
1-1/4''
|
1-1/2''
|
2''
|
|
Medium
|
Water, Air, Gas, Oil
|
|
Action
|
Direct Acting
|
Semi-Direct Diaphragm Operated
|
|
Function
|
2 Way, Normally Closed
|
|
Fluid Viscosity
|
20 CST below
|
|
|
0 to 1.0 Mpa
|
|
Temp. Range
|
-5 to +85℃
|
Main dimension of 2W & 2S Series Solenoid Valves:
Solenoid Valve Assembly Display:
Brando Factory Production of Solenoid Valves:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
