| উৎপত্তি স্থল: | চীন |
| পরিচিতিমুলক নাম: | BRANDO |
| সাক্ষ্যদান: | None |
| মডেল নম্বার: | FDF6A |
| ন্যূনতম চাহিদার পরিমাণ: | 5 পিসি |
|---|---|
| মূল্য: | আলোচনাযোগ্য |
| প্যাকেজিং বিবরণ: | ভিতরের বাক্স, শক্ত কাগজ, প্যালেট |
| ডেলিভারি সময়: | আলোচনা |
| পরিশোধের শর্ত: | টি/টি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম |
| যোগানের ক্ষমতা: | প্রতি মাসে 100000 পিসিএস |
| পণ্যের নাম: | রেফ্রিজারেশন সোলেনয়েড ভালভ | টিউব OD (মিমি): | 7.94 |
|---|---|---|---|
| টিউব OD (ইঞ্চি): | 5/16'' | ছিদ্রের আকার: | 5.8 মিমি |
| তারের ধরন: | ফ্লাইং লিডস | অ্যাকুয়েশন: | পাইলট পরিচালিত |
| ভোল্টেজ: | 24VDC, 24VAC, 110VAC, 220VAC | আবেদন: | এয়ার কন্ডিশনার, হিট পাম্প, আইস মেকার, ফ্রিজার, কুলার ইত্যাদি |
| সর্বোচ্চ অপারেটিং চাপ: | 4.5 mpa | ||
| বিশেষভাবে তুলে ধরা: | FDF6A refrigeration solenoid valve,FDF6A Two-Way Solenoid Valve,FDF6A58 Refrigeration Solenoid Valve |
||

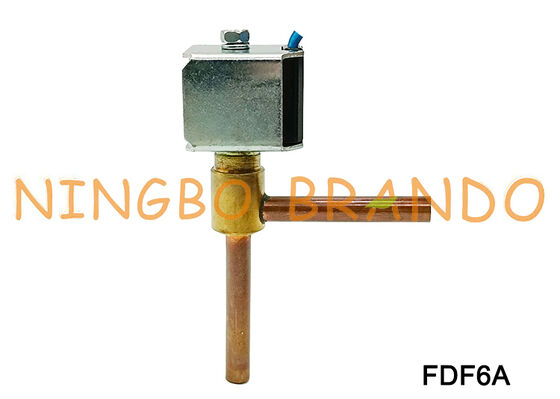

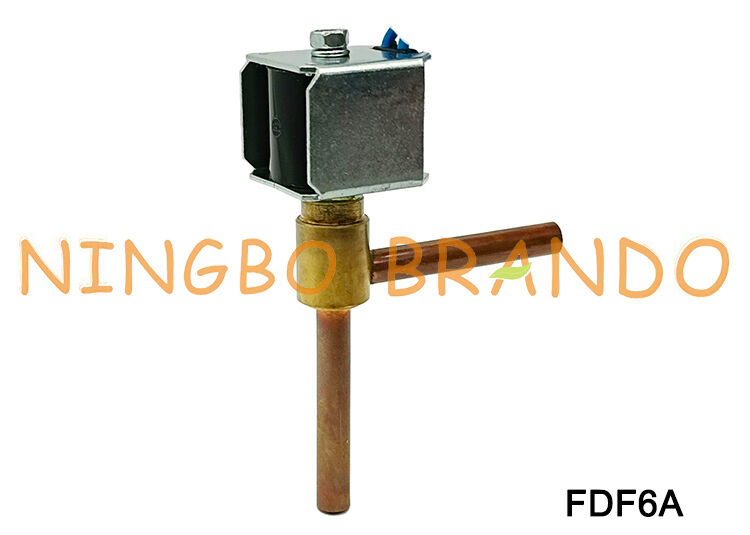

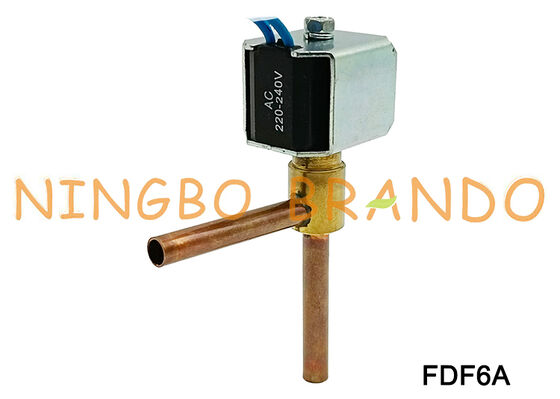

FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump
Product Features of FDF series solenoid valves:
1. Direct operated or pilot operated, 2 way normally closed solenoid valve. Normally open type is available.
2. For use with non-corrosive refrigerant.
3. Compactly designed for use in small appliances produced in quantity such as room air conditioners, dehumidifiers, heat pumps and ice making machines.
4. Various piping configuration available.
Technical Data of FDF NC Series Solenoid Valve:
|
Model
|
FDF2A94
|
FDF2.5A06
|
FDF3A08
|
FDF4A10
|
FDF6A58
|
FDF8A21
|
FDF11A05
|
FDF13A07
|
|
Actuation
|
Direct
|
Pilot
|
||||||
|
Kv(m³/h)
|
0.08
|
0.2
|
0.26
|
0.3
|
0.56
|
1.29
|
2.4
|
3.44
|
|
Max. OPD
(MPa)
|
3.4
|
3.4
|
3.4
|
3.4
|
3.4
|
2.8
|
2.8
|
2.8
|
|
Min. OPD (MPa)
|
0
|
0.01
|
0.01
|
0.01
|
0.01
|
0.01
|
0.02
|
0.02
|
|
MOP (MPa)
|
4.5
|
|||||||
|
Normal Position
|
NC
|
|||||||
|
Tube OD (inch)
|
1/4''
|
1/4''
|
5/16''
|
1/4''
|
5/16''
|
3/8''
|
1/2''
|
5/8''
|
|
Tube OD (mm)
|
6.35
|
6.34
|
7.94
|
6.35
|
7.94
|
9.52
|
12.7
|
15.88
|
Main Dimension of FDF NC Series Solenoid Valve:
![]()
|
Model
|
Measurement (mm)
|
||
|
L
|
L1
|
L2
|
|
|
FDF 2A 94
|
67
|
32
|
34
|
|
FDF 2.5A 08
|
85
|
38
|
38
|
|
FDF 3A 08
|
81
|
35
|
36
|
|
FDF 4A 10
|
81
|
35
|
38
|
|
FDF 6A 58
|
81
|
35
|
36
|
|
FDF 8A 21
|
114
|
62
|
62
|
|
FDF 11A 16
|
113
|
61
|
61
|
|
FDF 13A 12
|
114
|
62
|
62
|
